Package / form factor
ARMSENS
AX-269-K399
LED power supply AX-269-K399
AX-269-K399 is part of the AX-269 LED power supply family. Rated output configuration: 12 V / 5 A; 60 W.
No datasheet PDFProduct imageLifecycle pending
Output channels: 12 V / 5 ARated output power: 60 WInput voltage: 200–240 VACInput frequency: 50/60 Hz
- Manufacturer
- ARMSENS
- Category
- Power Supplies & Converters
- Family
- AX-269
- Package / form
- No verified package or form-factor field is published.
- Trusted sources
- 1
- Datasheet
- Not published
Mounting
No verified mounting field is published.
Lifecycle
No verified lifecycle state published.
RoHS
No verified RoHS statement is published.
REACH
No verified REACH statement is published.
Technical description
AX-269-K399 is part of the AX-269 LED power supply family. Rated output configuration: 12 V / 5 A; 60 W.
The supply accepts 200–240 VAC. The specified input frequency is 50/60 Hz. The assembly uses a ventilated metal enclosure. Heat is dissipated without a fan.
Allow for a body measuring 141 × 50 × 29 mm, in the dimension order used by the technical document. Match each output to its load and review the available installation information below.

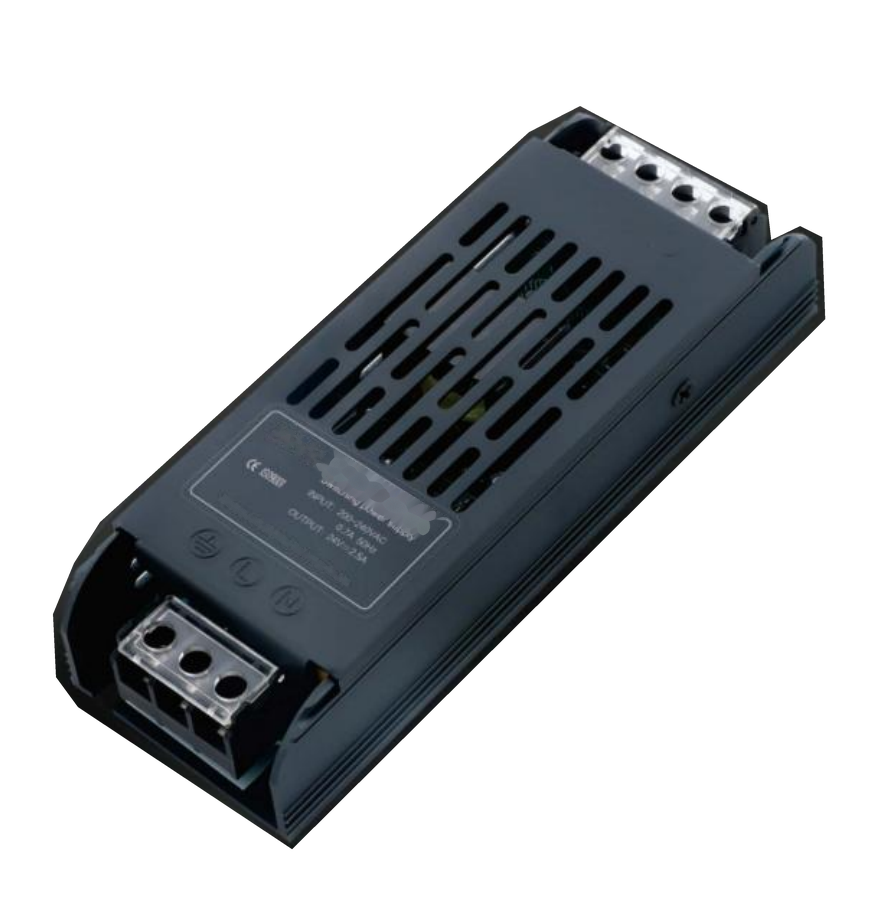

Photograph of the AX-269 series enclosure. Electrical ratings are specific to the selected variant.

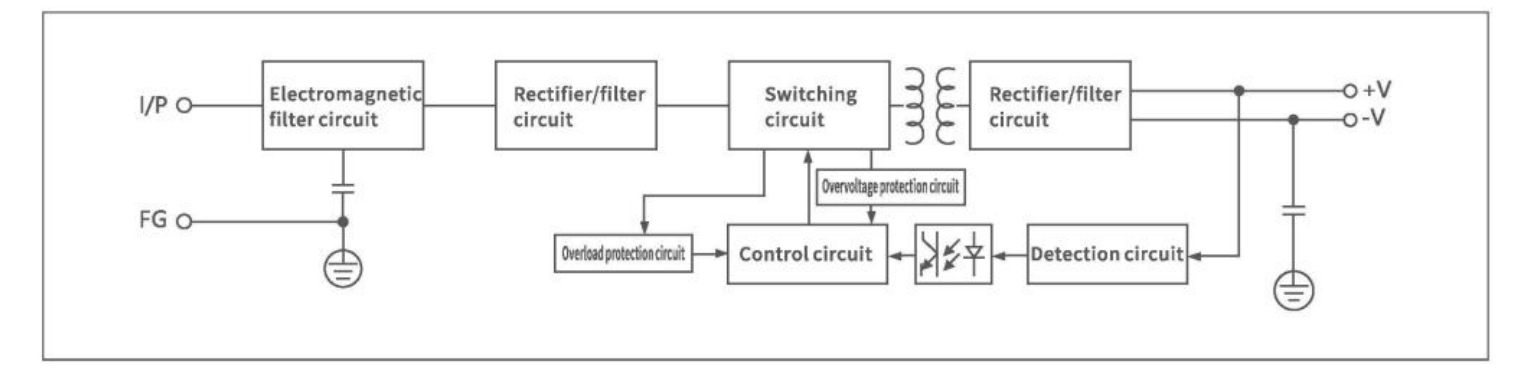

Original diagrams and mechanical drawings
These excerpts reproduce the technical document. Series diagrams can cover several output variants.
Download original diagramParameter table
Verified parameters
| Output channels | 12 V / 5 A |
|---|---|
| Rated output power | 60 W |
| Input voltage | 200–240 VAC |
| Input frequency | 50/60 Hz |
| Dimensions, document order | 141 × 50 × 29 mm |
| Min load | 0 A |
| Peak power | 60 W |
| Power adjustment rate | ±3% |
| Load regulation | ±5% |
| Efficiency | ≥86% @ 220 VAC, full load |
| Max ripple/noise | 350 mVp-p |
| AC leakage current | ≤3.5 mA @ 240 VAC |
| Overshoot protection | Automatic recovery after overcurrent fault removal |
| Operational requirements | −25…+40 °C, full load |
| Weight | 173 g |
| Ripple measurement conditions | 20 MHz bandwidth; 0.1 µF and 47 µF capacitors in parallel at the output terminals |
Manufacturer
ARMSENS
Browse 315 products from this manufacturer.
Family / category
AX-269
2 products are available in this family.
Family: AX-269
Cross references
Available after technical review
Cross-reference candidates require package, electrical, lifecycle, and application compatibility review.
No reviewed cross references are available for this part.
Alternative parts
Available after technical review
Alternative parts are listed only after the available technical documentation supports a compatible substitution.
No reviewed alternatives are available for this part.
