DIN rail power supply AX-218-K696
AX-218-K696 is part of the AX-218 DIN rail power supply family. Rated output configuration: 12 V / 11.3 A; 135.6 W; at 230 VAC input.
No datasheet PDFProduct imageLifecycle pending
Output channels: 12 V / 11.3 ARated output power @ 230 VAC: 135.6 WInput voltage: 85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational)Input frequency: 47–63 Hz
- Manufacturer
- ARMSENS
- Category
- Power Supplies & Converters
- Family
- AX-218
- Package / form
- No verified package or form-factor field is published.
- Trusted sources
- 1
- Datasheet
- Not published
Mounting
No verified mounting field is published.
Lifecycle
No verified lifecycle state published.
RoHS
No verified RoHS statement is published.
REACH
No verified REACH statement is published.
Technical description
AX-218-K696 is part of the AX-218 DIN rail power supply family. Rated output configuration: 12 V / 11.3 A; 135.6 W; at 230 VAC input.
The supply accepts 85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational). The specified input frequency is 47–63 Hz. The assembly uses an insulating housing. Confirm the cooling arrangement for the chosen version.
Allow for a body measuring 105 × 54.5 × 90 mm, in the dimension order used by the technical document. Match each output to its load and review the available installation information below.
Size the load using the input-dependent rating: the summary applies at 230 VAC, while the table provides separate values for 115 VAC.
Photograph of the AX-218 series enclosure. Electrical ratings are specific to the selected variant.

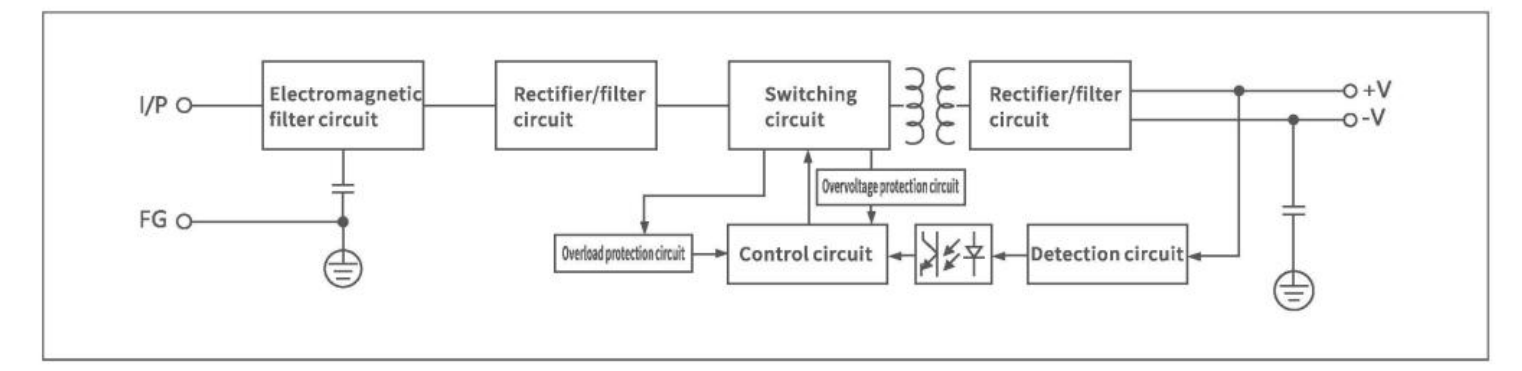

Original diagrams and mechanical drawings
These excerpts reproduce the technical document. Series diagrams can cover several output variants.
Download original diagramParameter table
Verified parameters
| Output channels | 12 V / 11.3 A |
|---|---|
| Rated output power @ 230 VAC | 135.6 W |
| Input voltage | 85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational) |
| Input frequency | 47–63 Hz |
| Dimensions, document order | 105 × 54.5 × 90 mm |
| Output current by input voltage | 10.2 A @ 115 VAC; 11.3 A @ 230 VAC |
| Output power by input voltage | 122.4 W @ 115 VAC; 135.6 W @ 230 VAC |
| Ripple & noise (max.) | 100 mVp-p |
| Voltage adj. Range | 10.8–13.8 V |
| Voltage tolerance | ±1% |
| Line regulation | ±1% |
| Load regulation | ±1% |
| Set up, rise time | 500 / 60 ms @ 230 VAC; 500 / 60 ms @ 115 VAC, full load |
| Typical hold-up time | 0 ms @ 230 VAC; 12 ms @ 115 VAC, full load |
| Voltage range | 85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational) |
| Efficiency (typ.) | 89% |
| Ac current (typ.) | 3 A @ 115 VAC; 1.6 A @ 230 VAC |
| Inrush current (typ.) | Cold start: 35 A @ 115 VAC; 70 A @ 230 VAC |
| Over voltage | 14.2–16.2 V; restart required |
| Working temp. | −30…+70 °C; subject to derating |
| Working humidity | 20–90% RH, non-condensing |
| Storage temp., humidity | −40…+85 °C; 10–95% RH, non-condensing |
| Temp. Coefficient | ±0.03%/°C at 0–45 °C |
| Operating altitude | 2000 m |
| Dielectric withstand | Input–output: 4 kVAC |
| Isolation resistance | Input–output: 100 MΩ at 500 VDC / 25 °C / 70% RH |
| Dimension | 105 × 54.5 × 90 mm |
| Catalog packing specification | 0.31 kg; 32 pcs / 11 kg / 1.0 CUFT |
| Rating conditions | Current and power at 230 VAC input; separate 115 VAC ratings apply. |
